Setting Options

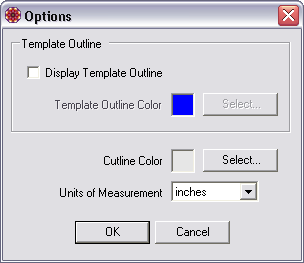

The Options dialog allows you to change the following settings:

To view the Options dialog choose the Tools > Options… menu item.



If Display Template Outline is checked, the segment template in the workspace staging area will include a thin outline that highlights the template's edges. This feature is useful when working with light-colored images or images with white backgrounds that would otherwise make the template boundary difficult to see. To change the color used for the template outline, click on the Select… button next to the Template Outline Color thumbnail to bring up the Select Outline Color dialog.



To change the color used for the cutlines when printing kaleidoscopes, click on the Select… button next to the Cutline Color thumbnail to bring up the Select Cutline Color dialog.



Use the Units of Measurement field to specify whether Kaleidoscope Kreator will display sizes in inches or centimeters.
